Scaffolding: Types, Parts, Hazards & Control Measures

Hazards & The Control Measures For Safe Use Of Mobile Tower Scaffolds

A scaffold is a temporary structure that is used to support workers and materials during construction, repair, or demolition. It is important to know how to safely use scaffolding in order to avoid injuries. This blog post will discuss the different types of scaffolding, the parts of a scaffold, the hazards associated with scaffolding, and the control measures that should be taken to ensure safety.

Scaffolding is used to provide a working platform for construction workers. It also supports materials such as bricks, mortar, and lumber. Scaffolding can be made from various materials, including wood, metal, and plastic.

Scaffolding can be used for a variety of purposes, including:

  • To provide access to areas that are difficult to reach
  • To support heavy loads
  • To provide stability during construction or repair work

The use of scaffolding can make construction and repair work much safer and easier. It can also help to protect workers from injury if they fall from a height.

If you are planning to use scaffolding, it is important to follow the manufacturer’s instructions carefully. You should also ensure that the scaffolding is set up correctly and is strong enough to support the weight of people and materials.

Scaffolding History

The history of scaffolding can be traced back to the early days of human civilization. The first use of scaffolding was in ancient Egypt, where it was used to build the pyramids. Scaffolding was also used in ancient Greece and Rome and later became popular in Europe during the Middle Ages.

Scaffolding became increasingly important during the Industrial Revolution, as it was used to build the factories and other structures that were needed for the new industrial economy. Today, scaffolding is still an essential part of construction and is used worldwide.

Importance of Scaffolding

Scaffolding is an important part of the construction. It allows workers to safely reach high areas, supports materials during construction, and helps to protect workers and passersby from falling objects. Scaffolding can be found on tall buildings, bridges, and other structures.

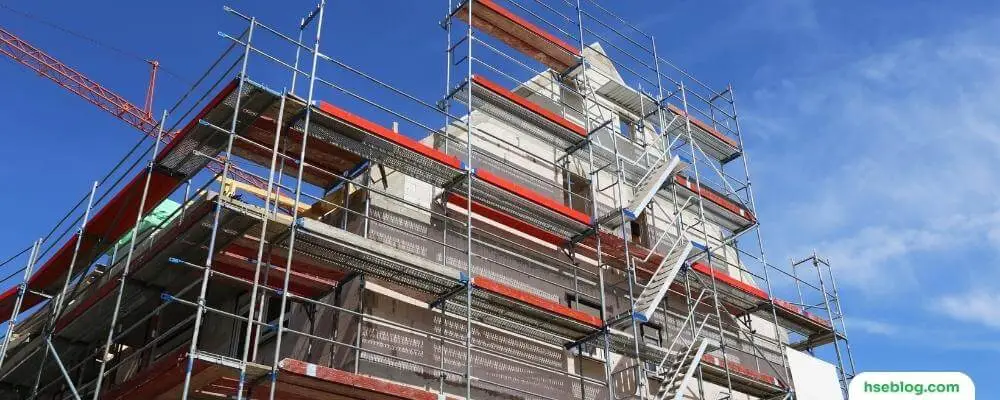

Types Of Scaffolding

There are many different types of scaffolding, each with its own purpose. Some of the most common types of scaffolding include:

  1. Single Scaffolding
  2. Double Scaffolding
  3. Mobile Scaffolding
  4. Suspended Scaffolding
  5. Independent Tied Scaffolding
  6. Cantilever Scaffolding
  7. Trestle Scaffolding
  8. Tower Scaffolding

1. Single Scaffolding

Single scaffolding is a type of scaffolding that is used to support one side of a structure. It is commonly used in construction and renovation projects. Single scaffolding consists of two parts: the standards, which are the vertical supports, and the ledgers, which are the horizontal supports. The standards are connected to the ledgers using coupling devices. Single scaffolding is usually erected using scaffold tubes, clamps, and boards. It is important to note that single scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents.

2. Double Scaffolding

Double scaffolding is a type of scaffolding that is used to support both sides of a structure. It is similar to single scaffolding but has an additional set of standards and ledgers. Double scaffolding is often used in masonry work. It consists of two rows of standards, which are connected by cross bracing. The ledgers are connected to the standards using scaffold tubes, clamps, and boards. Double scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents.

3. Mobile Scaffolding

Mobile scaffolding is a type of scaffolding that is mounted on wheels. It is commonly used in construction and renovation projects. Mobile scaffolding consists of two parts: the base, which is the platform that the workers stand on, and the tower, which is the frame that supports the base. Mobile scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents.

4. Suspended Scaffolding

Suspended scaffolding is a type of scaffolding that is hung from an overhead structure, such as a crane. It supports workers and materials during construction, repair, or demolition projects. Suspended scaffolding consists of a platform, which is suspended from ropes or cables, and a frame, which supports the platform. Suspended scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents.

5. Independent Tied Scaffolding

Independent tied scaffolding is a type of scaffolding that is supported by its own weight. It is commonly used in construction and renovation projects. Independent tied scaffolding consists of two parts: the standards, which are the vertical supports, and the ledgers, which are the horizontal supports. The standards are connected to the ledgers using coupling devices.

Control Measures For The Erection Of An Independent Tied Scaffold

Possible control measures to be implemented when erecting an independent tied scaffold include ensuring that the scaffold is designed for the load it is intended to take and that it is erected by a competent scaffold contractor on firm, level ground with base plates used to spread the load.

The scaffold components should be free from damage. The scaffolders should wear fall-arrest equipment during the assembly to prevent falls. The scaffold should be tied securely to the building with the appropriate number of ties to prevent collapse, taking into account possible loads and adverse weather conditions.

  • Correctly designed for use and load.
  • Designed for weather.
  • Equipment to be used.
  • Stable ground.
  • Base plates and sole plates.
  • Scaffold not damaged and in good condition.
  • Erected by competent persons.
  • Inspected before use.
  • Scaffolders wearing fall-arrest equipment.
  • Securely tied to structure/ building.
  • Protected from vehicles.

6. Cantilever Scaffolding

Cantilever scaffolding is a type of scaffolding that is supported at one end. It is commonly used in construction and demolition projects. Cantilever scaffolding consists of a platform supported by a frame at one end. The other end of the platform is free-hanging. Cantilever scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents.

7. Trestle Scaffolding

Trestle scaffolding is a type of scaffolding that is supported by trestles or horizontal supports. It is commonly used in construction and renovation projects. Trestle scaffolding consists of two parts: the standards, which are the vertical supports, and the trestles, which are the horizontal supports. The standards are connected to the trestles using scaffold tubes, clamps, and boards. Trestle scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents.

8. Tower Scaffolding

Tower scaffolding is a type of scaffolding that is supported by towers or vertical supports. It is commonly used in construction and renovation projects. Tower scaffolding consists of two parts: the base, which is the platform that the workers stand on, and the tower, which is the frame that supports the base. Tower scaffolding must be used with a safety system, such as guardrails, in order to prevent accidents. Different Parts/Components Of Scaffolding

Scaffolding is made up of several parts/components, which are as follows:

  • Standards: The vertical supports that hold up the scaffold.
  • Ledgers: The horizontal supports that run between the standards.
  • Transoms: The horizontal supports that connect the ledgers to the standards.
  • Braces: The diagonal supports that connect the standards to the ledgers.
  • Guardrails: The horizontal and vertical rails surrounding the scaffold prevent accidents.
  • Toeboards: The horizontal boards that are placed around the edge of the scaffold to prevent tools and materials from falling off.
  • Base Plate: The plate placed on the ground supports the scaffold.
  • Sole board: The board that is placed on the ground to support the base plate.
  • Ties: The devices that are used to secure the scaffold to the building.
  • Putlogs: The horizontal supports that connect the ledgers to the wall.
  • Planks: The horizontal boards that provide a walking surface on the scaffold.
  • Coupling: The devices that are used to connect the standards to the ledgers.

Working Platform: An important part of the scaffold is the platform on which the building workers operate and where building materials are stored prior to use. These are laid on the transoms in various quantities; usually, they should be four boards wide for general purposes. A working platform can be almost any surface from which work can be undertaken, such as:

  • A roof
  • A floor
  • A platform on a scaffold
  • Mobile elevating work platforms (MEWPs)
  • The treads of a stepladder

Other scaffold components include access ladders, brick or block guards, and chutes to dispose of waste materials.

Major Hazards Associated With Scaffolding

Some hazards are associated with scaffolding, including falls, electrocution, being struck by falling objects, and being caught between the scaffold and another object.

Fall Hazards: Falls from scaffolding is one of the most common accidents that occur on construction sites. Workers can fall if they lose their balance, slip on a wet or icy surface, or are struck by a falling object.

Electrocution Hazards: Workers can be electrocuted if they come into contact with power lines while working on scaffolding.

Falling Object Hazards: Falling objects can strike and injure workers on the ground, as well as workers who are on scaffolding.

Caught-Between Hazards: Workers can be caught between the scaffold and another object, such as a wall or a piece of equipment. This can result in serious injuries or even death.

Collapse Hazards: Scaffolding can collapse if it is not properly constructed or maintained. This can result in serious injuries or death.

Weather Hazards: Wind, rain, and snow can make scaffolding unsafe. High winds can cause scaffolding to collapse, while slippery conditions can increase the risk of falls.

Lighting Hazards: Poor lighting can make it difficult for workers to see, increasing the risk of accidents.

Equipment Hazards: Workers can be injured if they are struck by falling equipment or if they are using defective equipment.

Chemical Hazards: Workers can be exposed to hazardous chemicals when working with certain materials, such as paint or solvents.

Working Alone Hazards: Workers who are working alone on scaffolding are at an increased risk of injury. If a worker is injured, it may be difficult for someone to come to their aid.

Fatigue Hazards: Tired Workers are more likely to make mistakes, which can lead to accidents.

Distraction Hazards: Workers can be distracted by their work, other people, or equipment. This can increase the risk of accidents.

Access and Egress Hazards: Workers can be injured while climbing up or down scaffolding. They may also be injured if they fall while trying to access or egress the scaffold.

Housekeeping Hazards: Scaffolding can become cluttered with tools, debris, and other materials. This can create trip hazards and make it difficult for workers to move around safely.

Scaffolding Safety Control Measures

Several measures can be taken to ensure the safety of workers when using scaffolding, including:

1. Fall Protection

All scaffolds over four feet in height must have some form of fall protection. Three types of fall protection can be used on scaffolds: personal fall arrest systems, safety nets, and guardrails.

2. Unstable Base

Scaffolds must be placed on a stable base. The ground should be level and firm enough to support the weight of the scaffold and the workers.

If you are using a mobile scaffold, make sure it is locked in place before you start working. Never use boxes, barrels, or other unstable objects to support the scaffold.

3. Unsafe Planks and Decks

All scaffold planks and decks must be made of sturdy material that can support the weight of the workers. The boards should also be free of cracks, knots, holes, and splinters.

4. Wobbly scaffold

A wobbly scaffold is a dangerous scaffold. All four legs of the scaffold must be on a firm footing. The braces should also be securely fastened. Never stand on a chair, stool, or another object to reach a high area on a scaffold. This can cause the scaffold to tip over.

If you see a wobbly scaffold, do not use it. Report it to your supervisor immediately.

5. Overloading

Scaffolds must not be overloaded. This means that the scaffold should not be used to support more weight than it is designed for. The maximum load for a scaffold includes the weight of the workers, the materials, and the tools. Do not place materials on a scaffold if it will make the scaffold unstable. If you see a scaffold that is overloaded, do not use it.

6. Missing or Damaged Parts

All scaffold parts must be in good condition. This includes the base plates, cross braces, guardrails, and planking. Do not use a scaffold if any of these parts are missing or damaged. If you see a scaffold with missing or damaged parts, do not use it.

7. Unsafe Ladders

Ladders must be in good condition and properly secured to the scaffold. The rungs should be free of cracks, holes, or splinters. Do not use a ladder if any of these conditions are present. If you see an unsafe ladder, do not use it.

When using a ladder to access a scaffold, ensure that the ladder is placed at a safe angle. The top of the ladder should be flush with the edge of the scaffold. Never stand on the top rung of a ladder. This can cause the ladder to tip over.

If you need to transport materials up or down a ladder, use a bucket or pulley system. Do not try to carry materials up or down the ladder by hand.

8. Falling Objects

Falling objects are a major hazard on scaffolds. Make sure that all materials are securely fastened to the scaffold before you start to work. Do not move materials around on the scaffold while you are working. This can cause the materials to fall and injure someone below.

If you are working on a scaffold and someone is working above you, wear a hard hat to protect yourself from falling objects. Do not place tools or materials on the edge of the scaffold. This can cause them to fall and injure someone below.

If you see a tool or material falling from the scaffold, do not try to catch it. Move out of the way so that it does not hit you.

9. High Winds

High winds can cause scaffolds to collapse. If the wind is blowing, do not use the scaffold. Wait until the wind dies down before you start to work.

If you are working on a scaffold and the wind picks up, stop working and get off of the scaffold as soon as possible.

10. Lightning

Lightning is another hazard that can cause scaffolds to collapse. If you see lightning, do not use the scaffold. Wait until the storm passes before you start to work.

11. Slippery Surfaces

Scaffolds can be slippery, especially when they are wet. Wear shoes with good traction to help prevent slips and falls. If the scaffold is wet, do not use it until the surface has dried.

12. Electrical hazards

You are at risk of electrocution if you work on a scaffold near power lines. Ensure the scaffold is at least ten feet away from power lines. Do not use a scaffold if it is closer than ten feet to power lines.

13. Improper Use

Scaffolds must be used properly. Do not climb on the guardrails. Do not stand on the cross braces. Do not lean on the scaffold. Do not use the scaffold for anything other than its intended purpose.

14. Training

All workers who use scaffolds must be properly trained. If you are using a scaffold, make sure you know how to use it safely. Ask your supervisor if you have any questions.

15. Inspections

Scaffolds must be inspected regularly. Do not use a scaffold if it has not been inspected by a qualified person. If you see a scaffold that looks unsafe, do not use it. Report it to your supervisor.

16. Emergency Procedures

Knowing the emergency procedures if you are working on a scaffold and something goes wrong. Do not try to fix the problem yourself. Get off of the scaffold and call for help.

17. Safe Access And Egress

When you are using a scaffold, you must have a safe way to get on and off of it. Do not use a ladder to get on or off a scaffold. Use the stairs or an approved access point.

18. Personal Protective Equipment

When you are working on a scaffold, you must wear the proper personal protective equipment. This includes a hard hat, safety glasses, and gloves.

19. Housekeeping

Scaffolds can be a trip hazard. Keep the area around the scaffold clear of debris. Do not place tools or materials on the scaffold. This can cause them to fall and injure someone below.

20. Away From Traffic Routes

Scaffolds must be placed away from traffic routes. Do not place a scaffold in the path of vehicular traffic. If you are working on a scaffold near traffic, wear a reflective vest to ensure you are visible.

21. Post-Incident Procedures

Following the proper post-incident procedures if someone is injured while using a scaffold. Do not try to move the injured person. Call for help and wait for medical personnel to arrive.

22. Lower Level Uprights

Scaffolds must be equipped with lower-level uprights. Do not use a scaffold without lower-level uprights. Lower level uprights help to prevent the scaffold from tipping over.

23. Handrails & Toeboards

Scaffolds must be equipped with handrails. Do not use a scaffold without handrails. Handrails help to prevent falls.

Scaffolds must be equipped with toeboards. Do not use a scaffold without toeboards. Toeboards help to prevent tools and materials from falling off of the scaffold.

24. Guardrails

Scaffolds must be equipped with guardrails. Do not use a scaffold without guardrails. Guardrails help to prevent falls.

25. Personal Fall Arrest Systems

Scaffolds must be equipped with personal fall arrest systems. Do not use a scaffold without a personal fall arrest system. Personal fall arrest systems help to prevent falls.

26. Safety Nets

Scaffolds must be equipped with safety nets. Do not use a scaffold without safety nets. Safety nets help to catch people who fall off of the scaffold.

27. Ladders

Scaffolds must be equipped with ladders. Do not use a scaffold without ladders. Ladders provide a safe way to get on and off of the scaffold.

28. Stairs

Scaffolds must be equipped with stairs. Do not use a scaffold without stairs. Stairs provide a safe way to get on and off of the scaffold.

29. Properly Braced

Scaffolds must be properly braced and secured to the building or structure. Do not use a scaffold that is not properly braced and secured. This can cause the scaffold to tip over.

30. Trained Operators

Scaffolds must be operated by trained operators. Do not use a scaffold if you are not a trained operator. Trained operators know how to properly use and maintain the scaffold.

31. Maintenance & Inspection

Scaffolds must be properly maintained. Do not use a scaffold that is not properly maintained. Proper maintenance helps to prevent accidents.

Scaffolds must be inspected before each use. Do not use a scaffold that has not been inspected. Inspections help to identify defects and hazards. Scaffolds must be free of defects. Do not use a scaffold with any defects. Defects can cause the scaffold to collapse.

32. Certification

Scaffolds must be certified by a qualified person. Do not use a scaffold that has not been certified. Certification helps to ensure that the scaffold is safe to use.

33. Safe Work Practices

You must follow the proper safe work practices when working on a scaffold. This includes using the scaffold for its intended purpose, following the manufacturer’s instructions, and never removing any safety devices from the scaffold.

34. Head Protection & Foot Protection

When working on a scaffold, you must wear head protection. This includes a hard hat or another type of headgear. Head protection helps to prevent head injuries.

When working on a scaffold, you must wear proper foot protection. This includes closed-toe shoes or boots. Foot protection helps to prevent foot injuries.

45. Tools and Materials

You must use the proper tools and materials when working on a scaffold. Do not use defective or damaged tools or materials. This can cause the scaffold to collapse. When working on a scaffold, you must not wear loose clothing. Loose clothing can catch on the scaffold and cause you to fall.

Conclusion

Working on a scaffold can be dangerous. You must follow the proper safety procedures to prevent accidents. If you are unsure how to safely use a scaffold, ask a trained professional for help.

Did you find this article helpful? Share your thoughts in the comments below! And be sure to check out our other articles on safety in the workplace

Frequently Asked Questions (FAQS)

Mobile Scaffold Max Height

In general, the maximum height for a mobile scaffold is 20 feet. This includes the platform’s height and the supporting structure’s height.

Mobile Scaffold Platform Size

Generally, the maximum platform size for a mobile scaffold is 48 inches by 48 inches. The platform must be large enough to provide a safe working area for the user.

Mobile Scaffold Weight Limit

The weight limit for a mobile scaffold varies depending on the type and size of the scaffold. Always consult the manufacturer’s instructions for the weight limit of the specific scaffold you are using.

Mobile Scaffold OSHA Regulations

The Occupational Safety and Health Administration (OSHA) regulations apply to mobile scaffolds. These regulations can be found in 29 CFR 1926.451.

Mobile Scaffold Tower.

A mobile scaffold tower is a type of mobile scaffold. It consists of a raised and lowered platform using a hand-crank or electric-powered winch. The platform is typically surrounded by guardrails to prevent users from falling off.

When to Use a Mobile Scaffold Tower

A mobile scaffold tower can be used when a user needs to work at heights that are not easily accessible from the ground. For example, a mobile scaffold tower can be used to paint the exterior of a building or to clean the gutters.

Conclusion

Working on a scaffold can be dangerous. You must follow the proper safety procedures to prevent accidents. If you are unsure how to safely use a scaffold, ask a trained professional for help.

Did you find this article helpful? Share your thoughts in the comments below! And be sure to check out our other workplace safety articles.
