Understanding the dynamics of fire is essential for professionals in the field of fire safety and prevention and for everyone. The Fire Tetrahedron is a concept that provides a more in-depth analysis of what it takes to start and sustain a fire. This model, an evolution from the simpler Fire Triangle, has transformed our comprehension of fires, allowing for more effective firefighting and prevention strategies.

In this blog post, we will break down the fire tetrahedron, its definition, and the four integral components necessary for a fire to exist. We will detail how each component contributes to the genesis and continuance of a fire and how their absence can be instrumental in extinguishing a fire. By diving into these principles, we can arm ourselves with the knowledge to understand, prevent, and combat fires. So, let’s delve into the fascinating world of the fire tetrahedron.

What’s Fire Tetrahedron?

The fire tetrahedron is a model that represents the four elements required for a fire to start and continue: fuel, heat, oxygen (or another oxidizing agent), and a self-sustaining chemical chain reaction. It’s depicted as a tetrahedron, a three-dimensional shape with four equal triangular faces, with each face representing one of these necessary elements. If any of these elements is removed or suppressed, the fire will be extinguished.

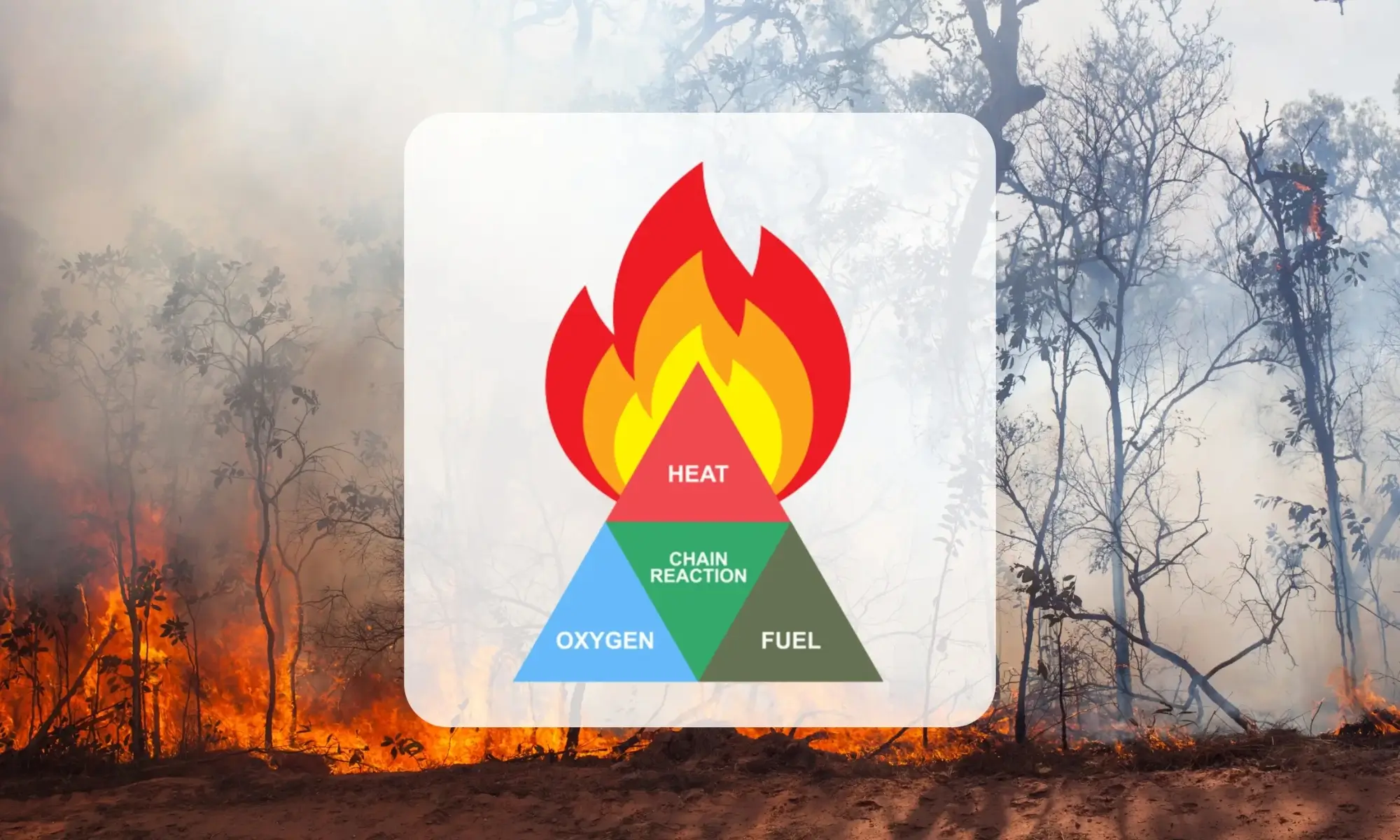

Fire Tetrahedron

4 Vital Components Of Fire Tetrahedron

The fire tetrahedron is a comprehensive model representing the four necessary elements or components required to initiate and sustain a fire. Each component represents a side of the tetrahedron, and the absence of any one element will extinguish the fire. Let’s delve into these components in more detail:

1. Fuel

Fuel refers to any combustible material that can feed a fire in the context of the fire tetrahedron. This can be a wide array of substances, such as wood, fabric, paper, gas, oil, certain metals, and even dust. Different fuels have different ignition temperatures and burn at different rates, affecting the fire’s characteristics.

2. Heat

Heat provides the necessary energy to increase the temperature of the fuel to a point where combustion can occur. This point is known as the ignition temperature or flash point. Heat can come from various sources like an open flame, a hot surface, an electrical spark, or friction. It is essential to maintain this heat for the fire to continue. The fire can be extinguished if the heat is reduced below the ignition temperature.

3. Oxygen

Fires need oxygen to burn. Typically, this oxygen comes from the air, about 21% oxygen. During combustion, the oxygen reacts with the fuel, producing heat, light, and new products like water vapor and carbon dioxide. This is a continuous process where oxygen feeds the fire, producing heat that releases more fuel vapor to react with the available oxygen.

4. Chemical Chain Reaction

This self-sustaining process allows a fire to continue burning once it’s started. When the fuel and oxygen react, they produce heat and new chemicals in a chain reaction. The heat released helps to liberate more fuel vapor, which then reacts with more oxygen, and the cycle continues. By interrupting this chain reaction, the fire can be extinguished. Certain fire suppressants disrupt this chain reaction, halting the fire’s ability to sustain itself.

The fire tetrahedron is a useful conceptual model for understanding fire and its constituent components. Identifying and controlling these four elements can prevent, control, or extinguish fires more effectively.

What's Fire Tetrahedron

Difference Between Fire Triangle And Fire Tetrahedron

The Fire Triangle and Fire Tetrahedron are both models used to understand the necessary components for a fire to start and continue burning. However, they differ in the number of elements they consider essential for combustion.

Fire Triangle


The Fire Triangle is an older model identifying three crucial elements for a fire: fuel, heat, and oxygen. It illustrates that a fire can’t start or continue without these three components. Removal of any one side of the triangle – be it the fuel (combustible material), heat (required to increase the fuel to its ignition temperature), or oxygen (required to sustain the combustion) – would effectively extinguish the fire.

Fire Tetrahedron


The Fire Tetrahedron is a more modern and comprehensive model that adds a fourth element to the fire triangle: the chemical chain reaction. This element recognizes that a self-sustaining chemical reaction occurs when a fire burns. The chemical chain reaction allows the fire to continue producing heat, which then liberates more fuel that combines with oxygen, thereby sustaining the fire. The tetrahedron shape illustrates that all four elements – fuel, heat, oxygen, and the chemical chain reaction – are interconnected, and removing any one of them will interrupt the process and extinguish the fire.

The key difference between the fire triangle and fire tetrahedron recognizes the self-sustaining chemical chain reaction as an essential fire element in the tetrahedron model. This addition provides a more detailed understanding of how fires start and how they can be extinguished.

Conclusion

In conclusion, the Fire Tetrahedron offers a comprehensive understanding of the conditions for fire to exist and thrive. The model illustrates the significance of four interconnected elements – fuel, heat, oxygen, and the chemical chain reaction. All these components play a critical role in initiating and sustaining a fire. Just as a tetrahedron loses its form if any side collapses, a fire extinguishes when any of these components is eliminated.

Throughout this blog post, ‘What’s Fire Tetrahedron | Definition and the 4 Vital Components’, we have dissected the fire tetrahedron concept and closely examined its components. By understanding this, we can appreciate the dynamic nature of fire and the intricacies involved in fire safety and prevention.

With this newfound understanding, one can take more effective measures to prevent fires or deal with them more efficiently when they occur. Ultimately, knowledge of the fire tetrahedron is a powerful tool in our collective efforts to safeguard lives and property against the devastating effects of fire. Remember, the key to fire safety starts with understanding and prevention.
