Every day in industrial workplaces, unassuming metal and plastic shields quietly save fingers, limbs, and lives. These fixed guards may not be glamorous, but they are the unsung heroes of machine safety. Whether you’re a seasoned safety officer or a junior engineer just learning the ropes, understanding fixed guards is key to keeping machines – and people – out of harm’s way.
In this article, we’ll explore what fixed guards are, the different types of machine guarding, the benefits of using fixed guards, how they work, and real-world examples of their use. We’ll also touch on relevant safety standards (OSHA, ISO, etc.) to show how fixed guards contribute to safer, smarter operations in manufacturing, construction, and beyond. Let’s dive in!
What Are Fixed Guards?
Fixed guards are protective barriers that are permanently attached to machinery, forming a physical shield between workers and hazardous machine parts. As the name implies, a fixed guard is a solid part of the machine itself – typically built from durable materials like metal sheet, steel mesh, or heavy plastic – and it does not move or depend on any machine power to do its job.
In essence, it’s a simple, static fence or cover that keeps body parts out of danger and dangerous parts in confinement. Because fixed guards have no moving components or sensors, they work passively: they are always in place during operation, blocking access to pinch points, blades, gears, or other hazards at all times.
Fixed guards come in many shapes and forms. They might be a solid metal cover following the contour of a saw or fan, a sturdy wire-mesh fence around a robotic cell, or a protective shroud over a belt and pulley drive. In all cases, the guard’s purpose is the same – prevent any contact between people (or their clothing and tools) and the machine’s danger zones. Not only do these guards stop accidental touch, but they also contain flying debris (chips, sparks, splashes) that machines can throw out.
A fixed guard is considered an integral part of the machine – not an optional add-on – because it’s usually bolted, welded, or otherwise affixed so securely that it effectively becomes one with the equipment.
Importantly, a true fixed guard cannot be removed easily or quickly. OSHA notes that fixed guards typically “require a tool for removal” – you might need a wrench or screwdriver to take one off, and you wouldn’t do that during normal operation. This means operators can’t (and shouldn’t) simply pop the guard open on a whim; it stays put unless a maintenance procedure calls for its removal.
In fact, safety regulations mandate that fixed guards be fastened in place with bolts or similar devices that remain attached to the guard or machine even when the guard is removed (so the hardware doesn’t get lost), and ideally the guard shouldn’t stay in place at all once those fasteners are undone.
All of this is to ensure that removing a fixed guard is a deliberate act – one that typically only trained maintenance personnel perform when the machine is shut down and safe. (We’ll discuss maintenance safety a bit later.)
Types of Machine Guards
Fixed guards are just one category in the broader world of machine safeguarding. To put them in context, here are the common types of machine guards and how they differ:
1. Fixed Guards
These are permanent, stationary barriers attached to the machine. A fixed guard stays in place during operation and is ideal for equipment that does not require frequent access or adjustment of its hazardous parts. Fixed guards are the most common type and often the first choice because of their straightforward effectiveness – they cover the danger area completely. (Example: A metal cover over a conveyor belt’s drive gears is a fixed guard.)
2. Interlocked Guards
These guards are designed for machines that do need regular access. An interlocked guard is connected to the machine’s control such that if the guard is opened or removed, the machine automatically shuts off. The equipment cannot start (or continue running) until the guard is back in place and the interlock is reset. Interlocked guards are great for scenarios like clearing jams or making frequent adjustments, since they allow quick access but “an open or removed interlocked guard will stop the machine”. (Example: A lathe with a door that, when opened, cuts power to the spindle is using an interlocked guard.)
3. Adjustable Guards
These are guards that can be manually adjusted to accommodate different sizes of material or different operations. They provide flexibility – for instance, a cutting tool’s guard might be moved closer or farther from the blade depending on the stock being cut. However, adjustable guards are not “full coverage” at all times; they have openings that change with adjustment, so they may not protect completely at every moment. They also rely on correct use by the operator – if left improperly adjusted, they could leave a gap. (Example: A bandsaw’s blade guard that you raise or lower based on workpiece height is an adjustable guard.)
4. Self-Adjusting Guards
These guards move automatically as the machine operates. The guard’s opening is determined by the material’s movement – it opens enough to let the material in and then closes back to a safe position. This way, protection is provided without the operator needing to readjust the guard each time.
Self-adjusting guards are common on tools like some circular saws: as you push wood in, the guard retracts just enough and then springs back over the blade when the wood passes. They are convenient, but like adjustable guards, some exposure can occur during the moment of operation (when the guard is pushed open). (Example: A self-closing transparent guard on a table saw that pivots upward when a board is fed in, then falls back down over the blade.)
Beyond these, there are other safeguarding methods (often termed safety devices – e.g. light curtains, two-hand controls, pressure mats), but those aren’t “guards” in the physical barrier sense. In practice, fixed guards and interlocked guards are preferred wherever feasible because they provide a solid, engineered barrier between people and hazards. Now, let’s zero in on fixed guards and see why they’re so valued.
Benefits of Fixed Guards
Fixed guards offer a host of benefits that make them a cornerstone of safe machinery operation. Key advantages include:
1. Maximum Protection
A well-designed fixed guard completely encloses the dangerous parts of a machine, so nothing can reach in and get hurt. It provides a sturdy barrier that keeps hands, arms, and other body parts out, while also containing flying debris or sparks inside. In terms of safety, a fixed guard “can provide maximum protection,” effectively isolating the hazard from the worker.
2. Simplicity and Reliability (Low Maintenance)
Fixed guards are as simple as it gets – no moving pieces, no electrical circuits, no fancy sensors. This simplicity is a huge plus: there’s little that can go wrong. Once the guard is properly installed, it requires minimal maintenance (just occasional checks for damage or wear). There’s no need to constantly adjust or calibrate a fixed guard, and nothing to fail in the middle of operation. Its passive nature means the protection is always “on” without any special effort. OSHA specifically notes that fixed guards usually need only “minimum maintenance” – they just quietly do their job.
3. Versatility and Custom Fit
Fixed guards can be made or adapted to fit nearly any machine configuration. They “can be constructed to suit many specific applications,” often even built in-house by a company’s maintenance team for a custom fit. Whether your machine has an odd shape or a unique hazard, you can fabricate a guard (from metal, plastic, wire mesh, etc.) that covers exactly what needs covering. This means fixed guards are useful across industries – from a small bench grinder to a giant industrial press – and can be tailored to the machine’s geometry. Many fixed guards are designed to follow the contours of the machinery for effective coverage without getting in the way.
4. Continuous Protection for High Production
Because fixed guards stay in place and don’t need frequent adjustment, they are ideal for high-volume, repetitive operations. On assembly lines or in automated processes, fixed guards allow the machine to run continuously while keeping workers safe. There’s no constant stopping to open or move the guard – the hazardous parts are safely fenced off all the time. This makes fixed guards well-suited to high-production environments where stopping the machine repeatedly would slow things down. In other words, they enhance safety without creating a bottleneck in the workflow.
5. Durability and Strength
Fixed guards are built to take a beating. They’re typically made from strong, impact-resistant materials (solid steel plates, heavy-gauge wire mesh, thick plastic shields, etc.) that can withstand the rigors of the industrial environment. A good guard will hold up against vibrations, flying objects, and even the occasional accidental bump from tools or forklift forks. For example, standards often call for guard materials that are “substantial enough to withstand whatever impact [they] may receive and to endure prolonged use.” When you install a fixed guard, you can count on it to be a long-term protector – it won’t easily crack, come loose, or fail when you need it most. This durability means more reliable safety and less frequent replacement or repair.
Of course, no safeguard is without trade-offs. Fixed guards, by covering things up, can sometimes hinder visibility or access. Workers might not see the machine’s inner workings as clearly, and when maintenance or adjustments are required, the guard usually has to be unbolted and removed. This means maintenance personnel must take extra steps (and precautions) when working on the machine.
However, these are usually minor inconveniences in light of the injury prevention benefits. With proper planning – for instance, designing guards with viewing windows, or using quick-release bolt systems for easier removal – even these drawbacks can be minimized. Overall, the benefits of fixed guards make them “preferable to all other types” in many situations due to their straightforward and dependable protection.
How Fixed Guards Work
A fixed guard functions on a very basic principle: if you can’t reach a hazard, it can’t hurt you. It works by physically separating the operator from the dangerous parts of a machine at all times. Consider a machine’s spinning gear or a cutting blade as a hazard – a fixed guard is like a wall between that hazard and the worker.
By covering the hazard fully, the guard ensures no body part (or any unintended object) can inadvertently go into the danger zone. In effect, the guard establishes a permanent safe distance. For example, if there’s a set of rotating gears, a fixed guard might be a metal enclosure around them; you might see the gears through ventilation slats or a mesh, but you cannot touch them – and they can’t “reach out” to snag you, either.
Another important aspect is that fixed guards often “hold the hazard inside the machine”. This means if the machine throws off material (like wood chips from a saw or sparks from grinding metal), the guard either blocks the material or directs it away from people. In this way, the guard not only prevents contact injuries (like cuts or entanglements) but also contains secondary hazards like flying debris. Think of a fixed guard as a two-way shield: it keeps you out of the danger, and it keeps the danger (debris, spray, fragments) inside the machine’s enclosure.
Fixed guards are typically securely mounted to the machine’s frame or a solid surface. Common methods include bolting, screwing, clamping, or welding the guard in place. The connection is strong enough that the guard won’t rattle loose due to machine vibrations or minor impacts. Because a fixed guard is rigidly in place, it doesn’t require any power or activation – it’s always there doing its job. Unlike an interlocked guard, it doesn’t need to send a stop signal to the machine; unlike an adjustable guard, it doesn’t need someone to set it each time. It’s a passive protector.
Due to this fixed position, any access through or around the guard is intentionally limited. Fixed guards often have no openings at all (fully enclosing the hazard), or only minimal necessary openings (for instance, a small slot where material feeds in or out, sized such that a hand can’t fit through). Safety standards actually provide guidelines on the size of any openings relative to their distance from the hazard – this is to ensure that even if there’s a necessary gap, it’s not large enough for a finger or arm to reach the dangerous part. In practice, many fixed guards use mesh or perforated metal so that air flow and visibility are maintained, but the holes are small enough to keep body parts out.
When it is time to remove a fixed guard – typically for machine maintenance, cleaning, or the occasional adjustment – it should be done under controlled conditions. Since fixed guards are not interlocked or electronically monitored, the machine must be stopped and secured (locked out) before the guard comes off. This usually means following a Lockout/Tagout (LOTO) procedure or a similar “safe system of work” so that once the guard is gone, no one can accidentally start the machine or expose others to the hazard. Only trained and authorized personnel with tools would remove the guard, and they’ll have a clear purpose for doing so (e.g. replacing a worn part behind the guard). Modern safety thinking treats this process very seriously: you might even post a sign on the guard – “Do not operate without guard in place” – to remind everyone that running the machine unguarded is forbidden. Indeed, OSHA’s guidance bluntly states: Never start or leave a machine running unless fixed guards are in their proper place.
In summary, fixed guards work by providing a constant, immovable barrier. They utilize solid construction and secure mounting to ensure that the barrier stays put and can withstand industrial use. They block, cover, and enclose hazardous machine parts, thereby leveraging the simplest law of physics for safety: what can’t be touched can’t hurt you. By doing so, they significantly reduce the risk of both direct contact injuries and injuries from thrown objects, all while being “always on” protection that doesn’t depend on any fancy technology – just good engineering.
Examples of Fixed Guard Applications

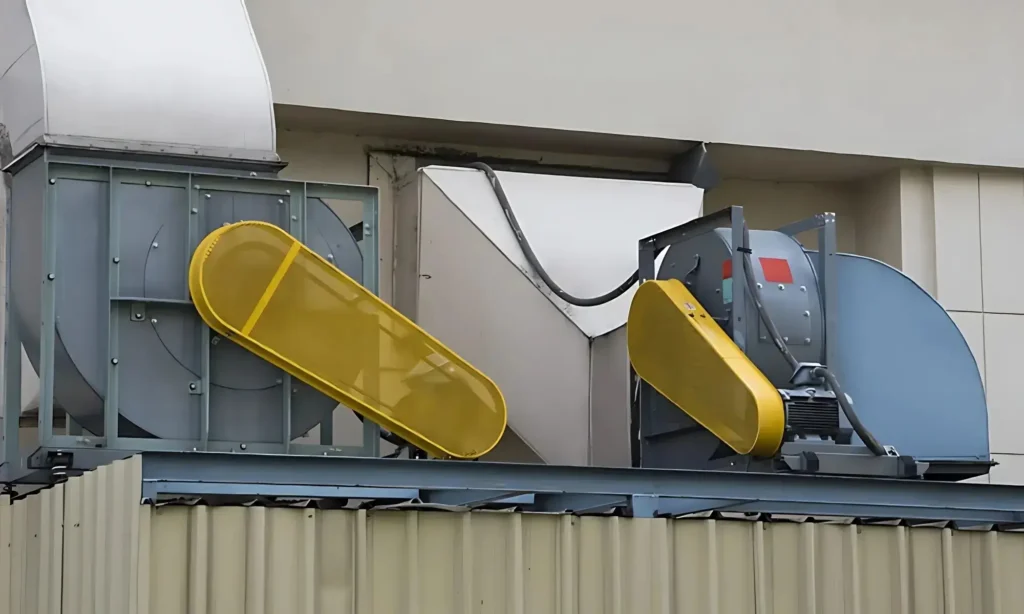

Picture a large industrial fan or motor assembly with a bright yellow metal cover shielding its belts and pulleys – that’s a classic fixed guard in action. The yellow mesh guard in the image above encloses a rotating pulley drive. Its job is to keep hands, loose clothing, or tools from getting anywhere near the whirring belts and wheels.
This kind of fixed guard is extremely common in manufacturing plants: you’ll see it on conveyors, fans, pumps, and engines – essentially any machinery where a belt, chain, or gear is exposed. By covering the pinch points and entanglement hazards, the guard ensures the equipment can run at full speed while workers can safely walk around or work adjacent to it.
In manufacturing settings, fixed guards take on many forms. For instance, in an automotive factory, a robot arm might be surrounded by a sturdy perimeter fence (a fixed guard) that prevents anyone from entering the robot’s work envelope while it’s operating. Only when the robot is shut down can a gate in the fence be unlocked (often that gate is interlocked, combining guard types).
Another example: on a punch press or stamping machine, the sides of the machine may have fixed steel panels so that no one can reach into the press from the back or sides during operation. Power transmission equipment like gearboxes, drive shafts, and couplings are frequently fitted with fixed cover guards – often just semi-circular metal hoods – to keep those spinning parts safely enclosed.
Even small workshop tools use fixed guards: a bench grinder typically has a fixed guard wrapping around most of the abrasive wheel, with only a small opening where you actually press the workpiece. This stops fragments from the wheel (if it were to shatter) and sparks from flying toward the operator.
On construction sites and heavy machinery, you’ll also find fixed guards playing a vital role. Heavy equipment such as conveyors, crushers, and mixers often employ fixed guarding. For example, a rock crusher may have fixed metal grates or screening guards over its intake hopper – this prevents people from reaching into the crushing chamber (and stops large chunks of rock from being ejected).
A portable cement mixer might have fixed covers over its drive belts and motor fan. Construction saws and drills can come with fixed blade guards or covers when the design allows. On agricultural or heavy vehicles, fixed guards appear as well: the power take-off (PTO) shaft on a tractor might be enclosed in a fixed shield when not in use, or the engine compartment might have panels that serve as fixed guards for the fan and alternator belt.
Railings and barricades around dangerous areas (like the perimeter of an industrial shredder or the edge of an automated palletizer) are essentially fixed guards too – they physically prevent workers from getting too close to a hazard.
To illustrate, consider a metal fabrication shop: A large hydraulic press brake in the shop could have fixed barrier guards on its backside where material is expelled – ensuring no one can accidentally stand behind it and get hit by moving parts or ejected pieces.
Meanwhile, a woodworking factory might use a fixed guard in the form of a transparent polycarbonate shield fixed over a cutter head that workers don’t need to access, allowing visibility of the process but blocking any accidental contact. In each of these cases, the fixed guard is custom-fit to the machine and hazard, demonstrating the versatility we mentioned earlier. By installing these guards, companies create a safer workspace. Workers can do their jobs without stepping into the line of fire, and machines can perform their tasks without endangering nearby personnel.
Safety Standards and Regulations
The use of fixed guards isn’t just a good practice – in many cases, it’s a legal requirement. Regulatory agencies and safety standards around the world emphasize machine guarding as fundamental to workplace safety. In the United States, the Occupational Safety and Health Administration (OSHA) sets clear rules for machine guarding.
For example, OSHA’s General Industry regulations (29 CFR 1910 Subpart O) state that “One or more methods of machine guarding shall be provided to protect the operator and other employees in the machine area from hazards such as those created by point of operation, ingoing nip points, rotating parts, flying chips, and sparks.” In plain terms, if a machine has any dangerous moving parts or ejects material, employers must guard it.
Fixed guards are one of the primary methods to achieve this protection, and OSHA often favors fixed guards because of their reliability. In fact, OSHA guidance documents note that fixed guards can “provide maximum protection” and are a preferred solution when applicable.
It’s worth noting that machine guarding violations are consistently among the top OSHA citations in industry. Lack of proper guarding has led to many preventable injuries, which is why inspectors pay close attention to whether machines have appropriate fixed guards or other safeguards. (For perspective, thousands of OSHA citations are issued each year for machine guarding deficiencies.) So, from a compliance standpoint, installing fixed guards isn’t just about keeping people safe (though that’s the most important goal) – it’s also about following the law and avoiding hefty fines or shutdowns.
On the international stage, there are ISO and other national standards that give more detailed guidance on machinery guarding. ISO 12100 is a broad international standard on machine safety principles, and it highlights guarding as a key risk reduction measure. More specifically, ISO 14120 (EN ISO 14120) is the go-to standard for the “design and construction of fixed and movable guards”. This standard (often adopted in Europe through the EU Machinery Directive) lays out requirements for guard strength, attachment, gap sizes, etc.
For fixed guards, ISO 14120 and the Machinery Directive echo what we discussed: fixed guards should be affixed in such a way that they can only be removed with tools, and whenever possible the fasteners should remain with the guard or the machine so they don’t get lost when the guard is off. They even specify that a fixed guard should not be able to stay in place without its fasteners – meaning you shouldn’t be able to just set it back and bypass bolting it, because that could tempt someone to save time and not fully re-secure it. These details ensure that fixed guards, when designed and used according to standards, provide consistent protection and are not easily defeated.
Other relevant standards and guidelines include ANSI B11 series (in the U.S.) for machine tool safety, which often align with OSHA and ISO requirements, and sector-specific regulations (for instance, OSHA has guarding rules for construction equipment, maritime, agriculture, etc., all with the same core principle: guard the hazards). No matter the standard, the message is remarkably consistent: if there’s a hazard, guard it, and a fixed guard is an excellent way to do so when it doesn’t impede necessary machine use.
In practical terms, adhering to these standards means companies should implement fixed guards wherever feasible, train employees about the purpose of the guards, and establish procedures (like lockout/tagout) for safely removing and reattaching guards during maintenance. Regular inspections are also encouraged – to check that guards are in place, secure, and not damaged. Many organizations include guard checks in their routine safety audits.
The forward-thinking approach in modern industry is to treat guards not as afterthought add-ons, but as an integral part of machine design and workflow. When buying new equipment, safety officers and engineers often look for designs that already include proper fixed guarding or are easy to retrofit with guards. This proactive compliance with OSHA and ISO standards helps create a safer work environment and a culture that values safety as much as productivity.
Conclusion: Guarding the Future with Fixed Guards
Fixed guards might be simple pieces of metal or plastic, but their impact on safety is profound. By providing a constant barrier between workers and machine hazards, they dramatically reduce the likelihood of accidents and injuries. In doing so, fixed guards contribute to smooth, safe machine operation – machines can run efficiently while people remain out of danger. This means less downtime from accidents, fewer injuries (and the associated costs and trauma), and a more confident workforce. Employees can focus on their tasks without the nagging fear of a sudden mishap, because they can see that the company has literally “built in” safety through solid guarding.
In an encouraging, forward-thinking safety culture, fixed guards are a given. They are not viewed as obstacles to productivity, but rather as enablers of sustainable production – after all, a machine that is well-guarded is one that can work day in and day out without hurting its operators. Modern innovations like light sensors and emergency stop systems are fantastic supplements, but they don’t replace the fundamental necessity of a physical guard. In fact, the best approaches use multiple layers of protection, with fixed guards as the first line of defense. As technology advances, we may see new materials or smart sensors integrated into guards, but the core idea remains the same: separating man from machine hazards in a reliable way.
To keep a bit of perspective (and a light-hearted note), you can think of a fixed guard as the loyal, no-nonsense “bodyguard” for your equipment – it just stands there, day after day, making sure nothing bad gets through. It doesn’t ask for much and it doesn’t take coffee breaks! All it needs is the occasional check and maintenance, and it will tirelessly protect everyone around it. By embracing the use of fixed guards and following safety standards, companies send a clear message: workplace safety comes first. This proactive approach not only complies with regulations but also boosts morale – workers feel valued and protected, which can increase their engagement and productivity.
In conclusion, fixed guards are a foundational element of machine safety. They exemplify how sometimes the simplest solution is the most effective. So next time you walk through a factory or job site, take a look at those sturdy guards covering gears, chains, and blades. They may blend into the background, but they are doing essential work – preventing countless injuries and ensuring everyone goes home with all the fingers and toes they came in with. And that, ultimately, is the goal of all safety measures. By keeping fixed guards in place and in mind, we build safer workplaces today and set the standard for an even safer tomorrow.
